Dual Opteron - back plane cover 8 July 2006

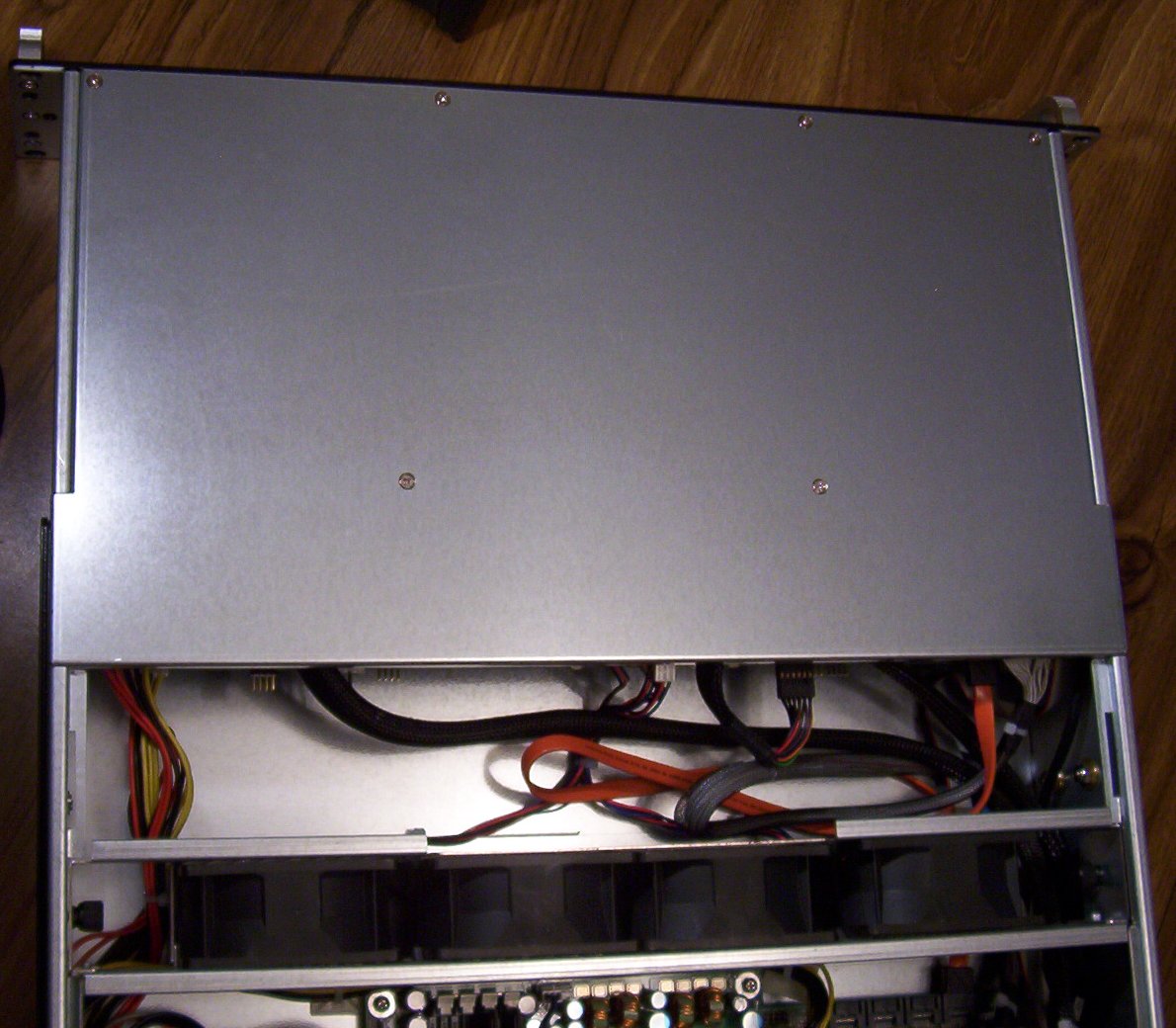

The back plane cover. At the bottom, you can see the four very loud fans that suck air from the front, over the drives, across the motherboard, and out the back of the case. Beneath this cover are the HDD cages, and the back plane into which they fit

black plane cover

Click on the picture for a larger image.
