Dual Opteron - lower backplane 1 January 1970

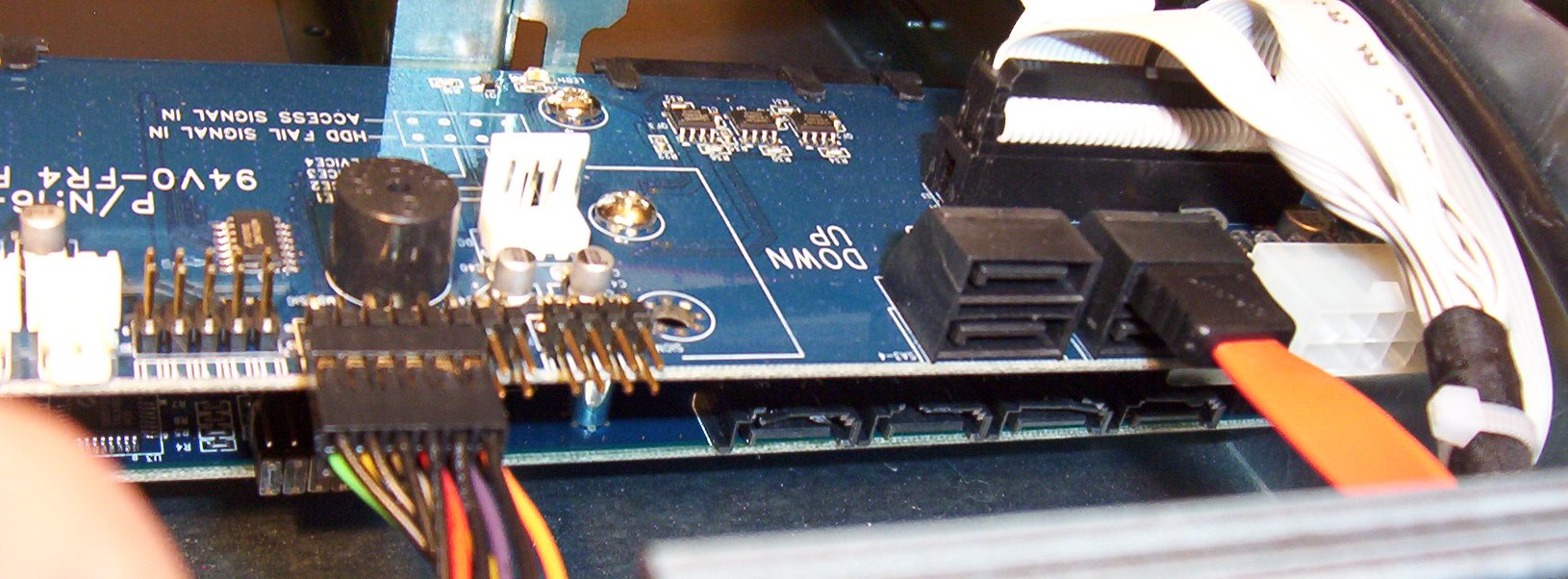

In this image, you can see all eight SATA connectors. On the top board, you can see two stacks of two plugs each. On the bottom board, you can see four single connectors Yes, there is damage to some of those connectors.
