The Supermicro motherboard 7 November 2000

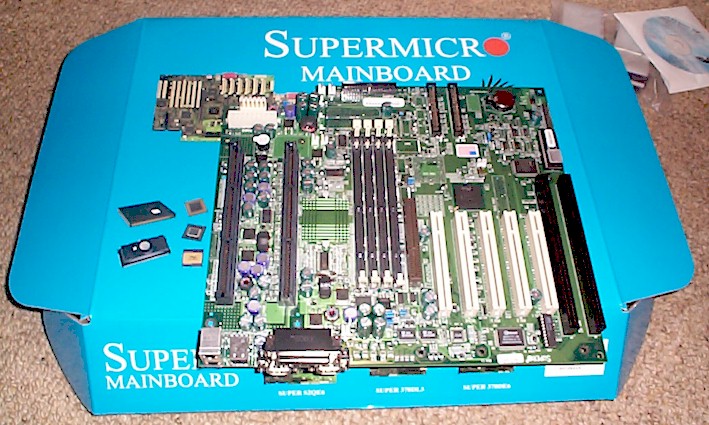

The motherboard is a Supermicro S2DGE. The CPUs go into the two long black slots on the left hand side. Next to that are the four memory slots. Then the AGP slot for video. Then five PCI slots, and then two ISA slots. Above the second PCI slot, near the top of the board, are two IDE connectors.

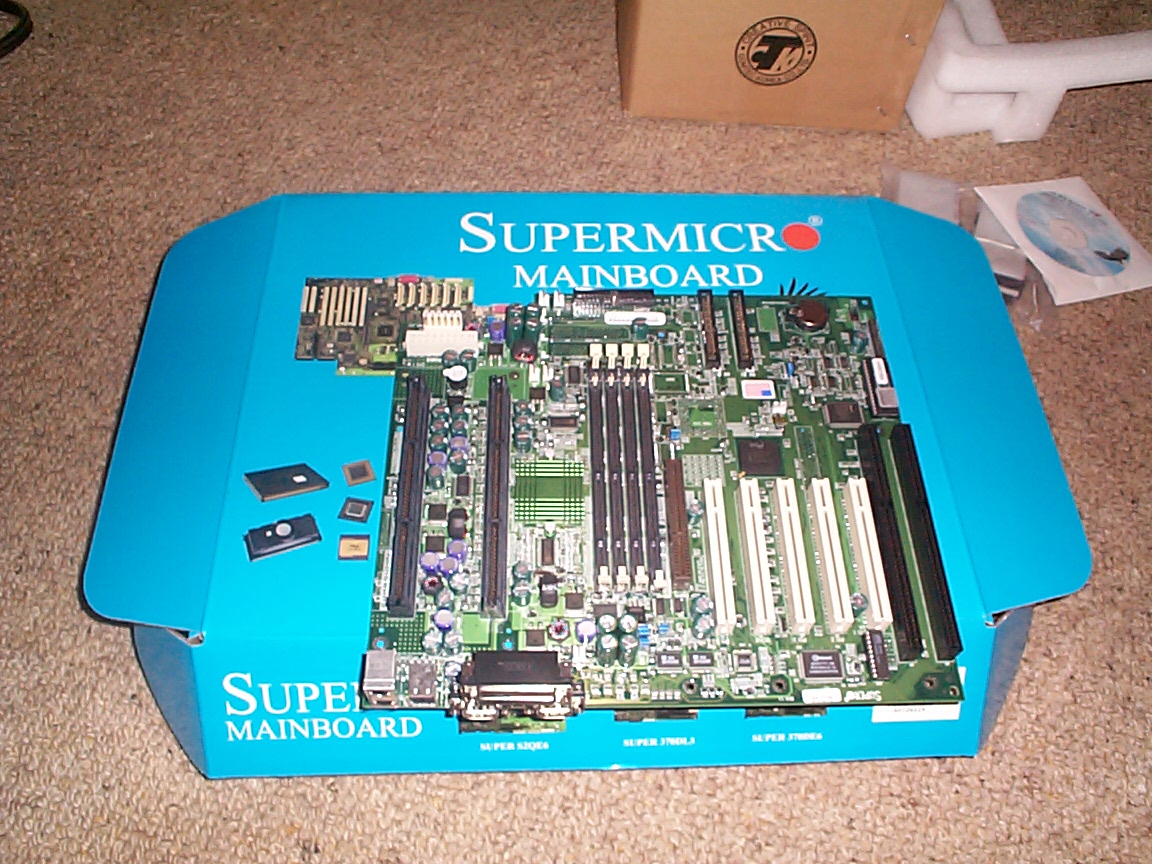

Click for larger image

Click on the picture for a larger image.
