Case open
20 November 2000
|
|

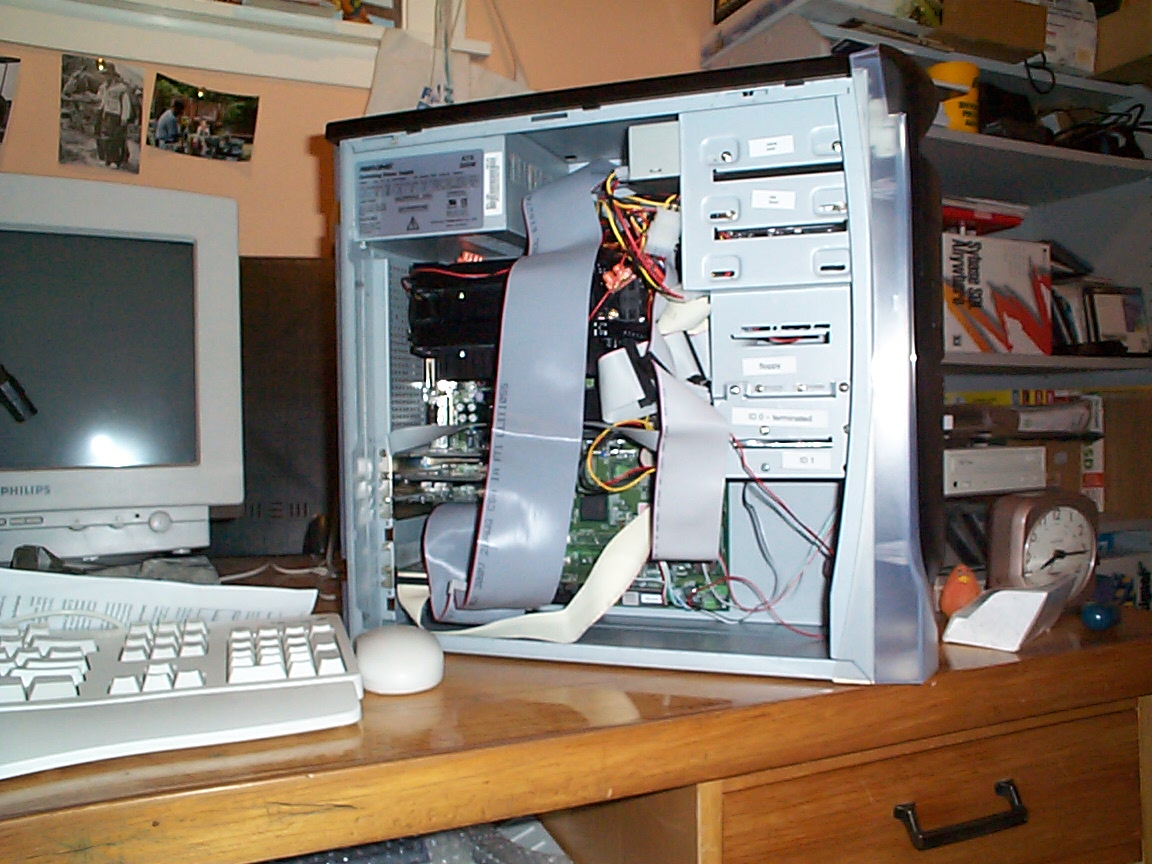

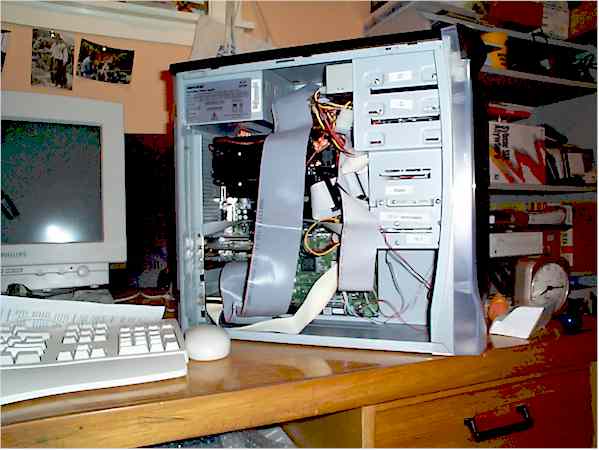

Here's the case with the panel removed. The long grey cable on the left goes from the SCSI card on the bottom to the CDRW at the top. The smaller white cable goes from the AHA 2940U2W to the two 18GB SCSI cards. The grey cable on the right goes from the on-board IDE controller to the IDE boot drive (which will eventually be removed now that the 2940U2W BIOS is seen by the m/b.
Click on the picture for a larger image. |
