Configuring IPsec on your XP Professional laptop 22 December 2005
Share
Need more help on this topic? Click here
This article has no comments
Show me similar articles

IPsec is a tool you can use to secure your network communications. I use IPsec to ensure my wireless connections are secured. IPsec offers security and peace of mind over and above the traditional WEP and MAC-address filtering.

NOTE: although this article was written with wireless communication in mind, it applies equally well to traditional wired communication as well.

I have already written about configuring my FreeBSD IPsec gateway and workstations. In this article I will show how I configured my Windows XP box to use the same gateway.

The main resource I used for this exercise was FreeBSD Wi-Fi IPsec easy-setup guide (since removed from the Internet).

You might ask why I'm writing about Windows XP on a website about FreeBSD? My terse answer is because I can. My realistic answer is because it will help people. It's something I did, with my FreeBSD gateway. I use XP on a regular basis. Use the right tool for the job. Sometimes that's XP. Sometimes it's FreeBSD.

A recap of the configuration

I will give a brief overview of the gateway configuration. I have a FreeBSD machine that functions as a dedicated wireless gateway. The primary purpose of this box is to keep out all the stuff that is not allowed and to ensure that only my machines are used on this WAP.

This is the content of the gateways's /etc/ipsec.conf:

spdadd 10.0.0.0/24 0.0.0.0/0   any -P in  ipsec esp/tunnel/10.0.0.10-10.0.0.1/require;
spdadd  0.0.0.0/0  10.0.0.0/24 any -P out ipsec esp/tunnel/10.0.0.1-10.0.0.10/require;

I am using racoon as my key server. It does the job, but I'm hoping for other alternatives. Sometimes I have to restart racoon on the gateway in order to get a session established. Here is the relevant portion of /usr/local/etc/racoon/racoon.conf. This works for my laptop whether it's running XP, FreeBSD 4.10, or FreeBSD 5.3.

remote anonymous {
  exchange_mode aggressive,main,base;
  lifetime time 24 hour;
  proposal {
    encryption_algorithm  3des;
    hash_algorithm        sha1;
    authentication_method pre_shared_key;
    dh_group              2;
  }
}

sainfo anonymous {
  lifetime                 time 12 hour ;
  encryption_algorithm     des, 3des, des_iv64, des_iv32, null_enc, rijndael, blowfish;
  authentication_algorithm hmac_sha1, hmac_md5;
  compression_algorithm    deflate ;
}

By the way, to install racoon from the ports tree, I did this:

cd /usr/ports/security/racoon
make install clean
Under more recent versions of FreeBSD, you must also add this to /etc/rc.conf:
racoon_enable="YES"
This command can be used to start racoon manually:
/usr/local/etc/rc.d/racoon.sh start

Configuring the XP client

The Windows XP client should be similar to that found in Windows 2000, and hopefully Windows 2003. IPsec configuration is performed through the Microsoft Management Console (mmc). To start mmc, perform the following steps:

  1. click on Start
  2. click on Run
  3. type mmc
  4. press ENTER

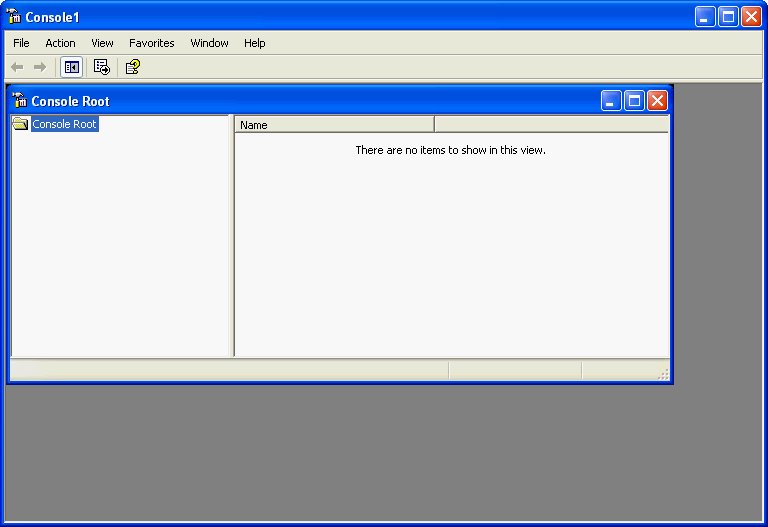

You should now see something like this:

Adding the Security Policy Management Snap-in

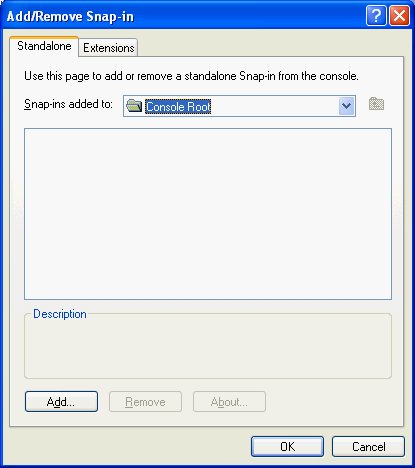

Click on File | Add/Remove Snap-in....

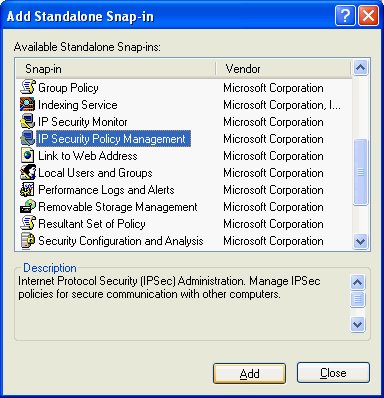

Click on Add... and scroll down to and click on IP Security Policy Management. You should see this:

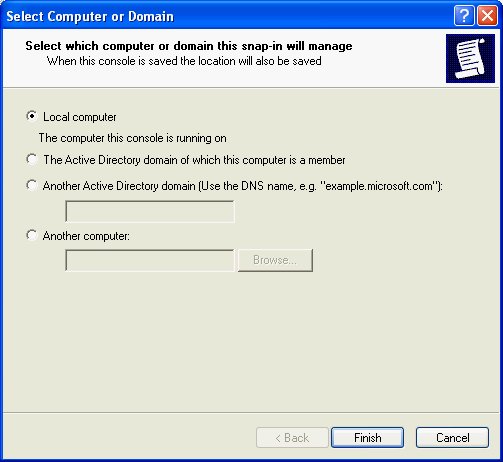

Then you need to select the local computer and click on Finish:

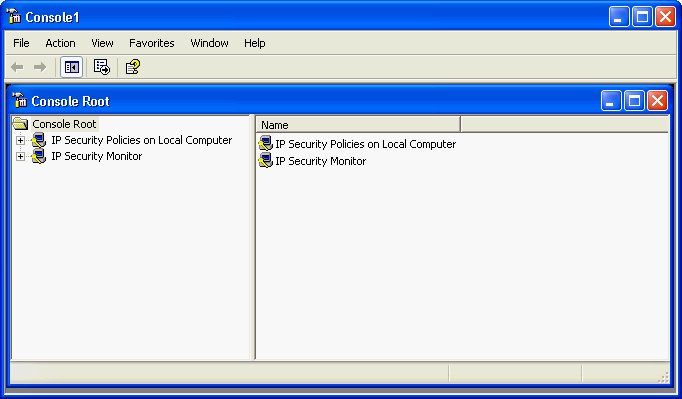

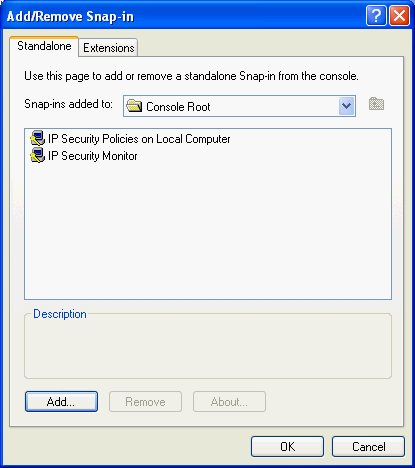

If you are running XP, you should also select the IP security Monitor snap-in and click add. Then click on Close. You should now see this:

Click on OK, and you'll be back at mmc but with two new entries under Console Root.

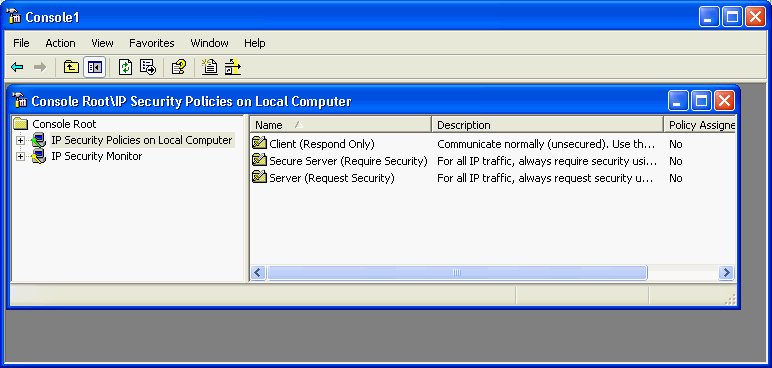

NOTE: if you click on IP Security Policies on Local Computer you will see this:

Creating the IP Security Policy

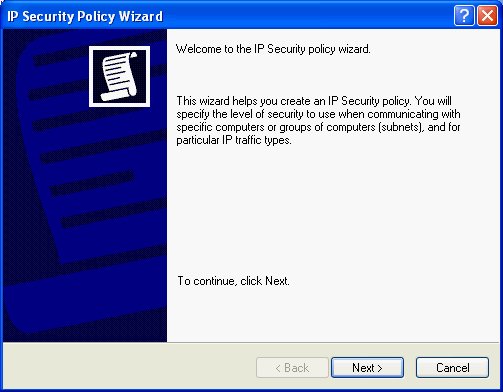

We are now going to create the IP Security Policy we will use on this laptop. Start this process by right clicking on IP Security Policies on Local Computer and then selecting Create IP Security Policy. This will invoke the IP Security Policy Wizard.

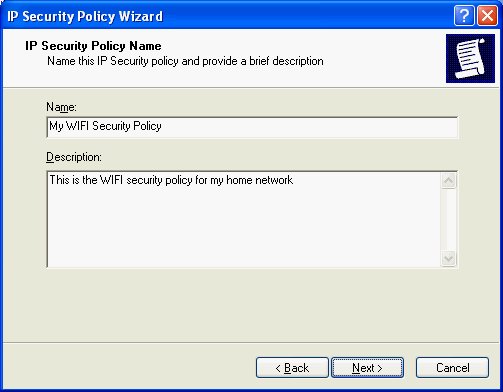

Give your policy a name (I called mine My WIFI Security Policy) and a description:

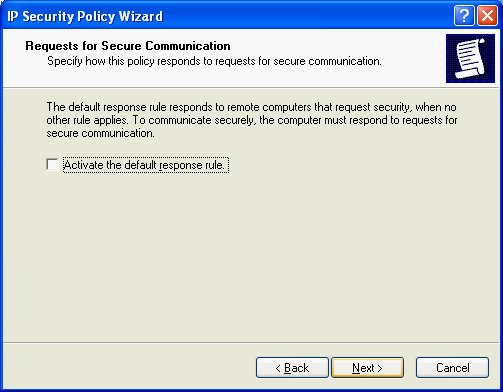

Be sure to uncheck Activate the default response rule.

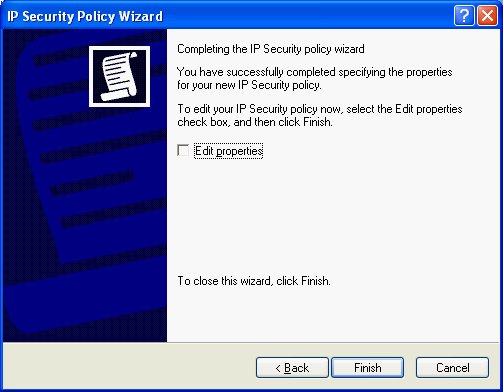

Also uncheck Edit Properties. Then click Finish.

You now have a security policy, although it has no content.. Now we will define filter lists for the inbound and outbound traffic.

Create the Outbound filter

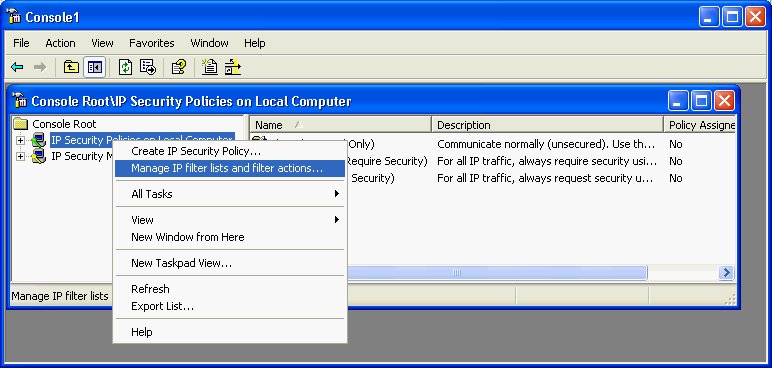

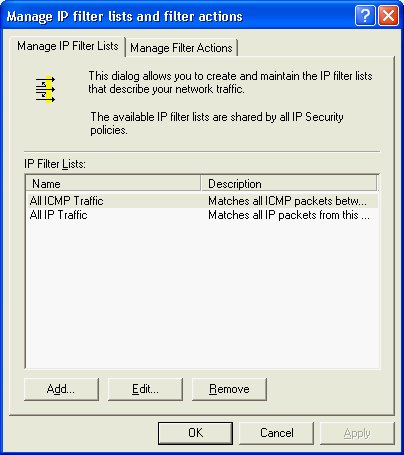

Start by right clicking on IP Security Policies on Local Computer and select Manage IP filter lists and filter actions... and you should see this:

Click on Add and you will see this:

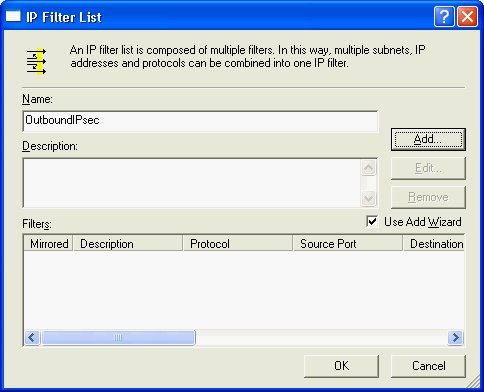

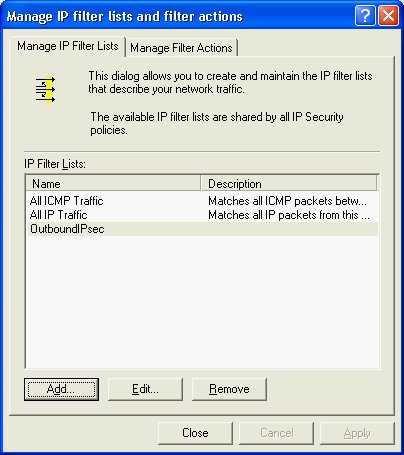

Click on Add and name your filter list (I called mine OutboundIPsec). This is what you should see:

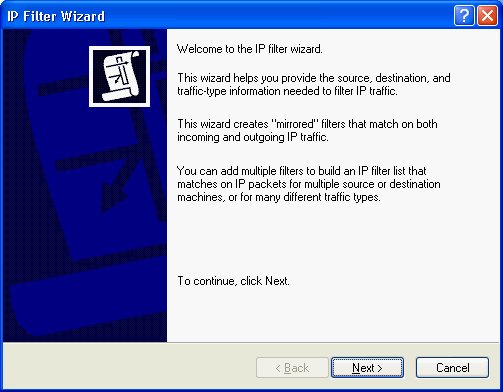

Now we need to add define the filter contents. Click on add and you'll see the IP Filter Wizard:

Click on Next and select the Traffic Source. You want My IP address:

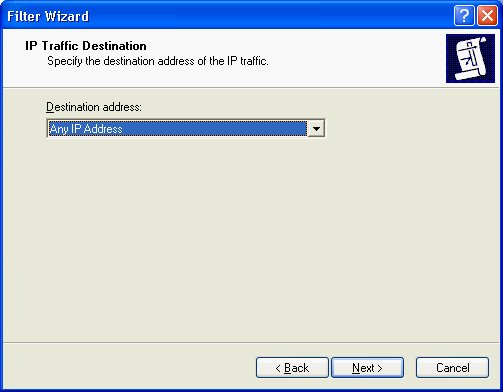

Click on Next and select the Traffic Destination. You want Any IP address:

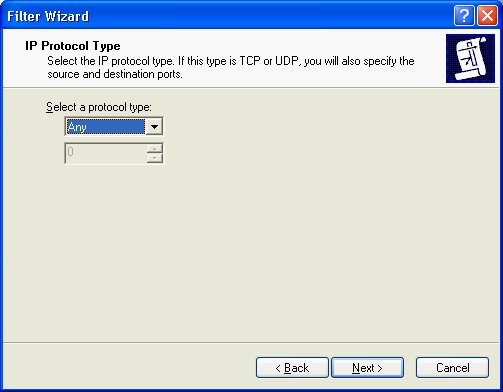

Protocal type is Any:

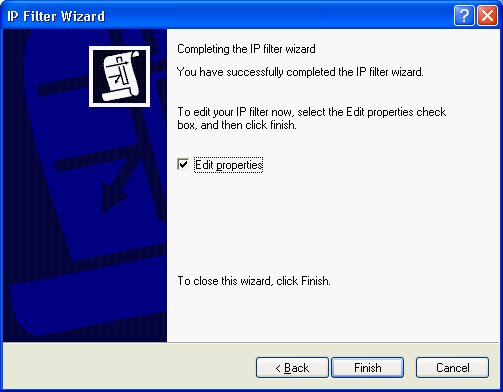

Be sure to check the Edit Properties box:

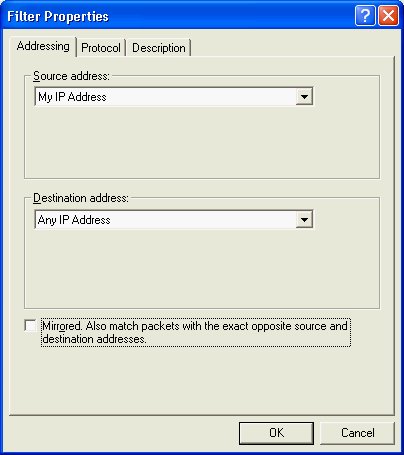

When you get to the Filter properties window, be sure to uncheck Mirrored. This is important.

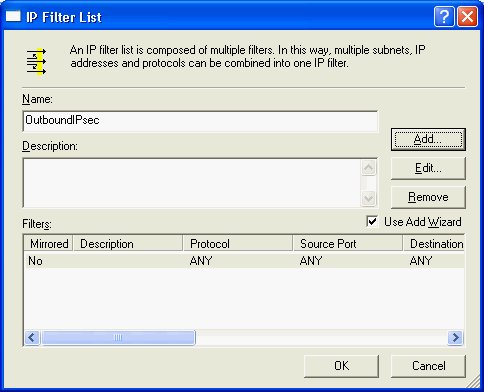

Now you should be back at the IP Filter List window. Your filter should be listed in the Filters section. Click OK.

After you clicked OK, you should see this:

You have now created your outbound filter list. Now we will create a similar list for the inbound traffic.

Create the Inbound filter

You have just created the outbound filter. Now repeat the same steps again but for inbound traffic. The differences will be:

  1. Use Any IP Address for the Source Address
  2. Use My IP address for the Destination Address

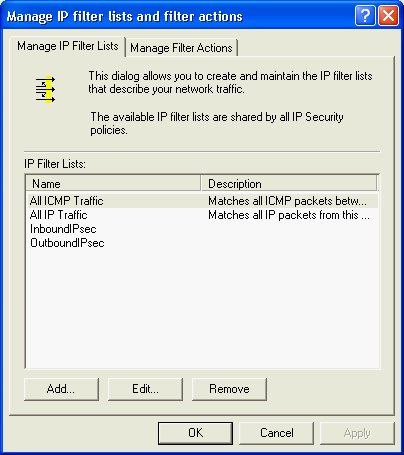

Remember to check Edit Properties and to uncheck Mirrored. After completion, you should see this:

As Timothy Ham cautioned, pay attention to what have now. You should have two entries in IP Filter Lists. Each list should contain one rule. You should not have one Filter List, with two rules. Verify that the two filters are not mirrored. Click on Close and you should be back at the MMC console.

Using the filters

So far we have:

  1. created a security policy
  2. added an outbound filter list
  3. added an inbound filter list

Creating the Outbound Security Rule

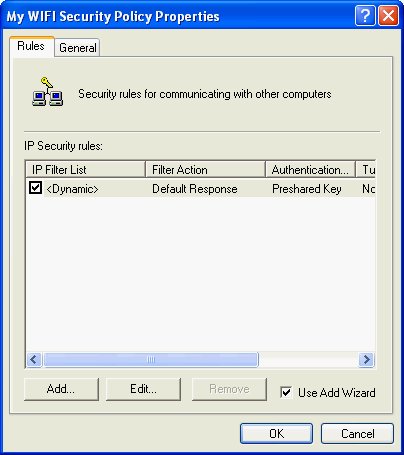

Now we will start using the filter lists. Double click on My WIFI Security Policy and you should see this:

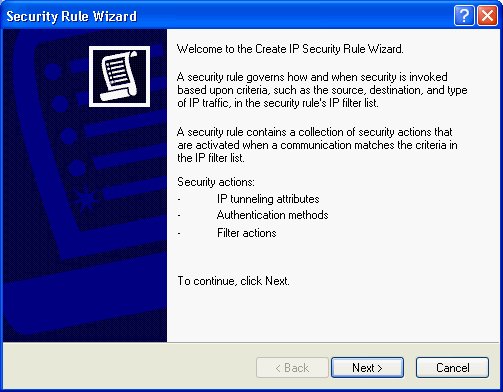

Click on add to start up the Security Rule Wizard:

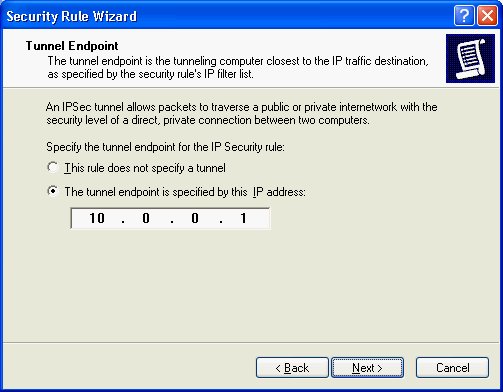

Click Next, and you will see the Tunnel Endpoint window. Click on The tunnel endpoint is specified by this IP address and supply the IP address of your gateway (for me, that's 10.0.0.1).

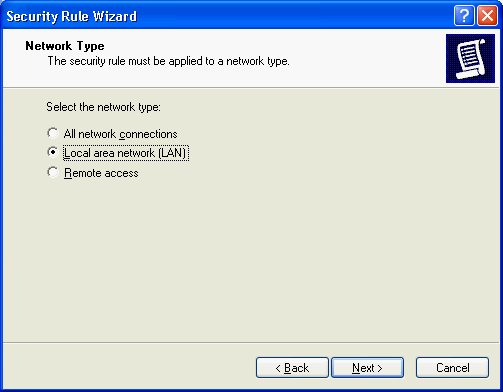

Click on Next, and specify the type of traffic that must be encrypted. I chose Local Area Network (LAN). I'm sure All network connections would work as well.

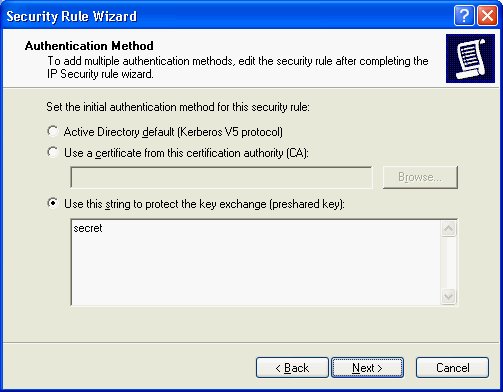

Click on Next and select the Authentication Method. We will be using preshared keys. Enter your key on in the space provided. For testing purposes, I used the word secret.

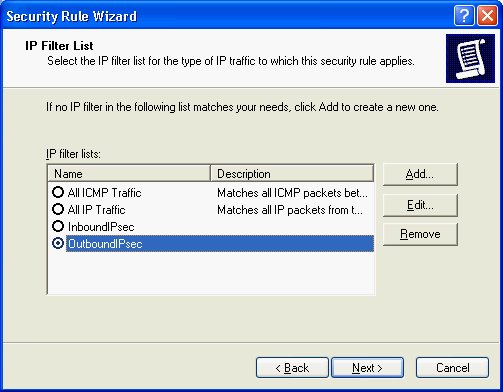

Click Next, and you'll be asked to select the Filter List against which this security rule should apply. Choose OutboundIPSec.

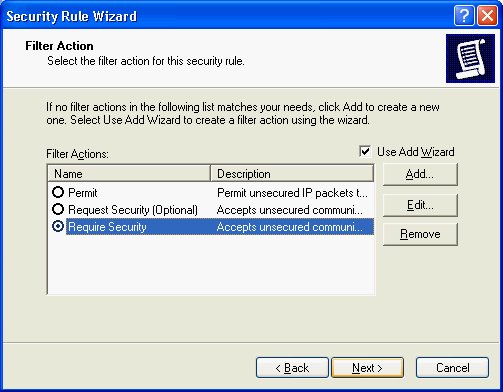

Click on Next. Select the action for this security rule. In this case, we want Require Security. We do not want any traffic to pass unless it is IPsec (note: DHCP etc will still get through without IPsec).

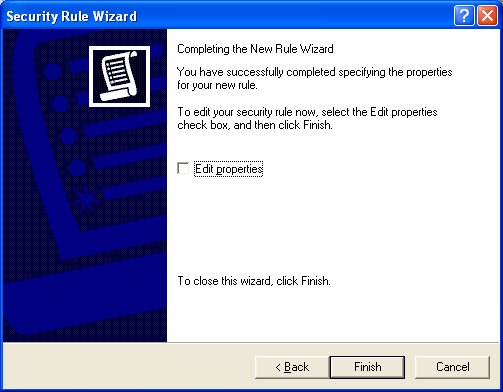

Click on Next, and you will see the last window in the Security Rule Wizard. Ensure that Edit Properties is off, and click Finish.

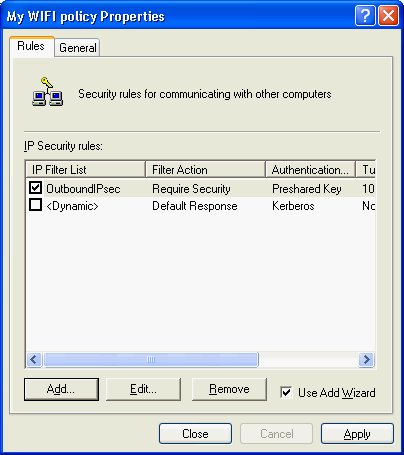

Your policy properties should now look like this:

Creating the Inbound Security Rule

You should now repeat the same steps again, but for the Inbound traffic. The differences are:

  1. The tunnel endpoint should be the IP address of this PC.
  2. Apply this rule to the InboundIPsec filter list

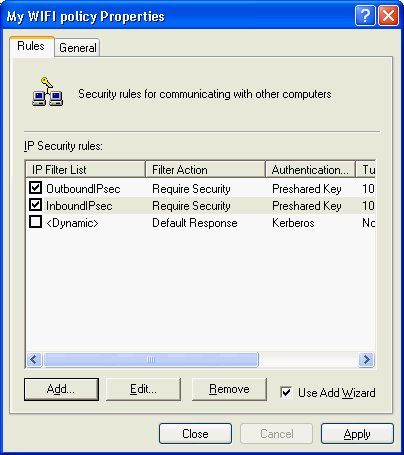

Once you have completed this, your policy properties should look like this:

All done, save the results

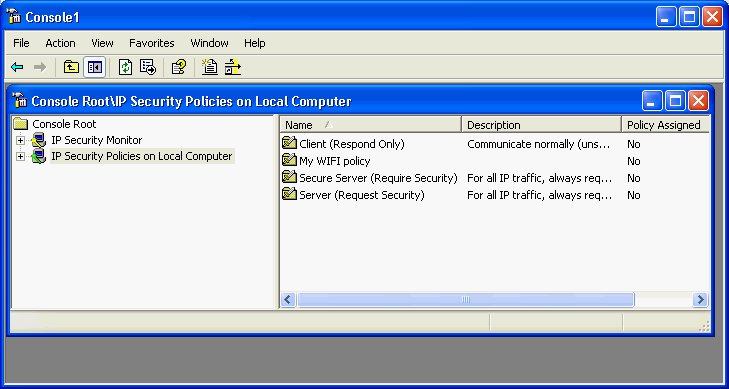

Here is what your MMC console should look like now:

You will note that the Policy Assigned column contains No. That means your policy is not in effect. We will change that soon.

Save your data using File | Save. I named my file wifi-console.

Invoking the rules

So far, we have established a policy, created two filter lists, and added one rule to each filter list. Now we will invoke that policy to ensure that only IPsec traffic flows between the laptop and the wireless gateway.

Unwanted DNS updates
If you start seeing this message in your logs on your DNS server, then I know the fix:
named[111]: denied update from [192.168.0.20].40061 for "example.org" IN

In this case, 192.168.0.20 is the internal IP address of my wireless gateway. That gateway also has the 10.0.0.1 IP address used above as the end point of the tunnel. example.org is the domain name (not really, I changed it for this article) given to the laptop.

To prevent these DNS updates, turn off connection registration. To do this perform the following steps:

  1. Click on Start
  2. Click on Control Panel
  3. Click on Network and Internet Connections
  4. Click on Network Connections
  5. Right click on your [wireless] connection and select Properties
  6. Under "This Connection uses the following items" select "Internet Protocol (TCP/IP)"
  7. Click on Properties
  8. Click on Advanced
  9. Select the DNS tab

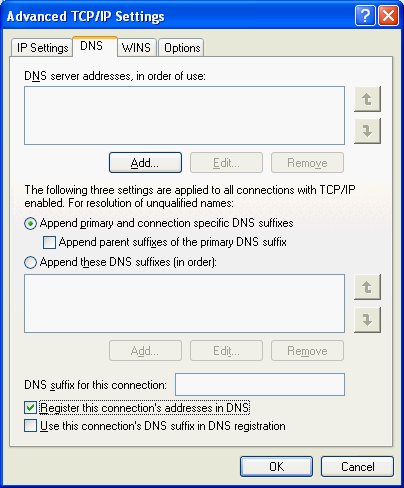

You should not be looking at something like this:

Uncheck Register this connection's addresses in DNS and you should stop seeing those messages.
